Before files are compared they must be aligned; the alignment rule can be configured.

Align by Name Case Sensitivity

The default alignment method compares file name strings; if they match case-sensitively then they will be aligned.
Suppose you have the scenario shown below

By default, winter.jpg and WINTER.JPG will not be aligned because their strings don’t match uppercase and lowercase characters.
This result sometimes isn’t what you expect; maybe you want to ignore uppercase/lowercase differences.
This can be achieved by selecting ‘Ignore File Name Case’ from the popup menu.

Align by HFS+ Filesystem Case

Normally the HFS+ disks are formatted ignoring the file name case, so if we have winter.jpg and WINTER.JPG they cannot be created in the same directory (because they have the same name).

When the HFS+ partitions are formatted with case-sensitive support the file names winter.jpg and WINTER.JPG are two different file names and can be created in the same directory.

It is possible to let VisualDiffer determine the file name alignment case algorithm by looking at HFS partition case, so three scenarios are possible:

1. left and right are both case insensitive
2. left and right are both case sensitive
3. left/right is case sensitive and right/left is case insensitive

If the last scenario is true, the alignment will try to be smart: first it searches for a match case (winter.jpg with winter.jpg) then it tries to align with the most similar name.

Align by User Defined Rules

There are scenarios where it is necessary to align files having different names.
The simplest scenario has files with the same name but different extensions as shown below

Suppose you want to align ignoring the file extension to produce the result shown below

This can be achieved using VisualDiffer ‘user-defined alignment rules’.

Managing Alignment Rules

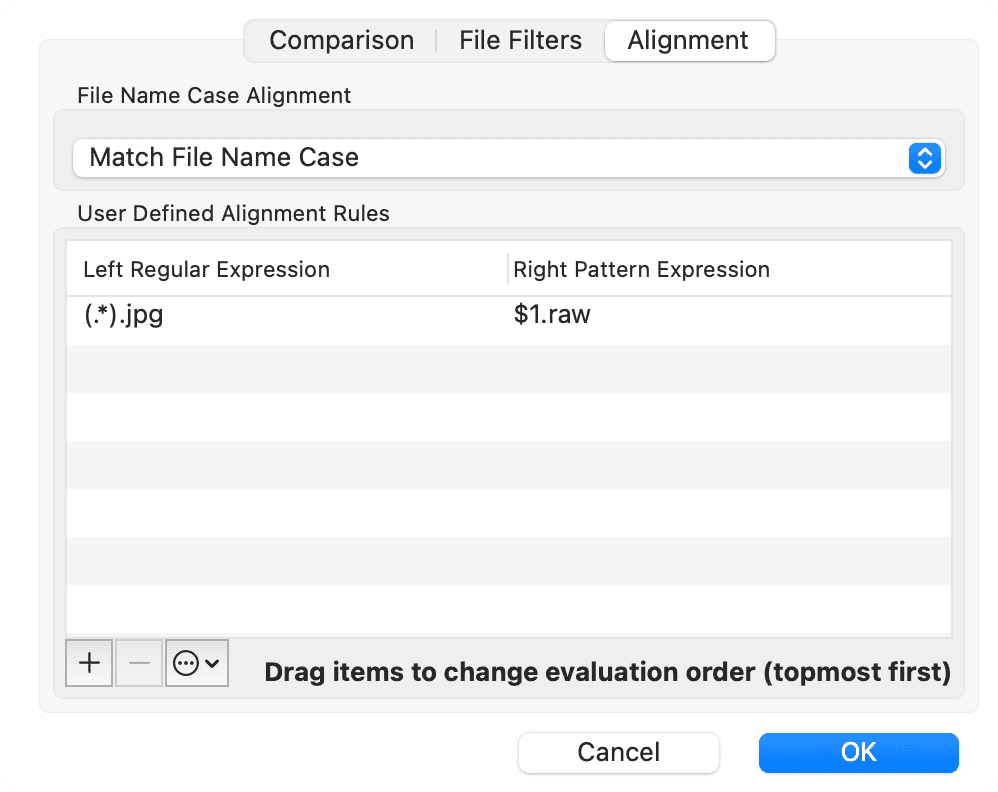

You can create, edit or delete rules from Session Preferences Dialog

More rules can be assigned to a VisualDiffer session comparison; they are evaluated from top to bottom.

Creating a Rule

When you add a new rule (or edit an existing one) you access the dialog shown below

A rule has

• a left regular expression
• a right pattern expression

If you are not familiar with regular expressions please refer to ICU documentation.

Left Regular Expression

The left regexp is used to match a filename on the left side of VisualDiffer Folder View; we want to find all jpg files so we create a group (.*) followed by the .jpg extension.

Right Pattern Expression

Notice the right expression isn’t a regular expression; it should contain some special patterns used to access regular expression groups (if any).

The right expression is used to match a file name on the right side of VisualDiffer Folder View; we want to match .raw files having the same name as the file on the left side.
So we use the $1 to get the first group present on the regexp (in this example there is only one group but you can have nine groups).

Now if you save the rule and then run the comparison you obtain the result shown below

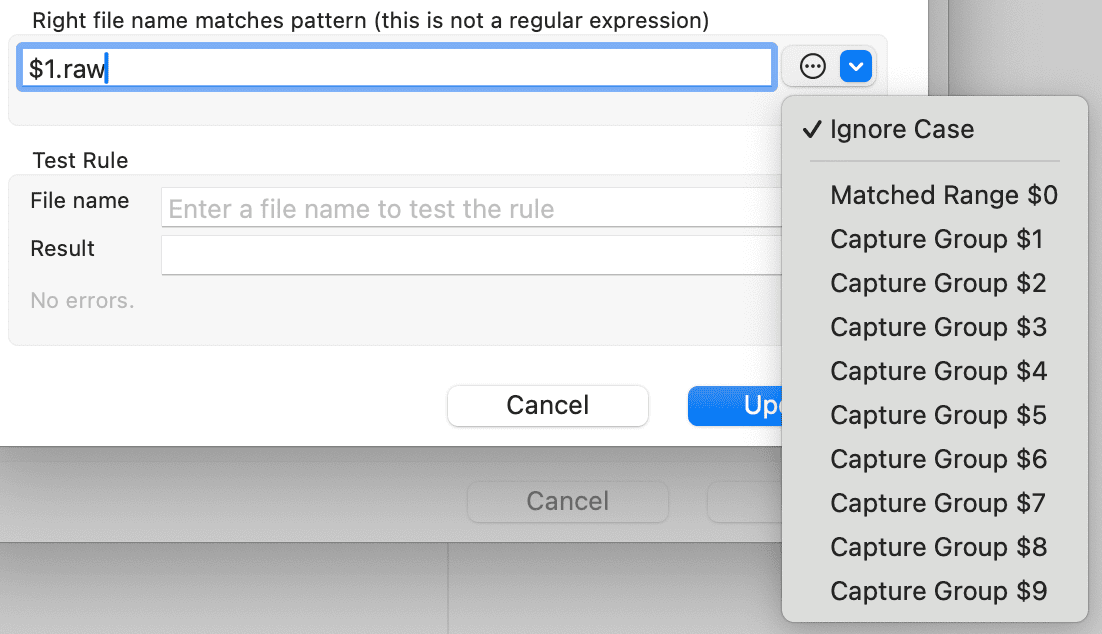

But 002.jpg and 002.RAW files are not aligned because the 002.RAW extension is uppercase; this can be easily fixed by ignoring the case on the right expression as shown in the figure below

Test Rule

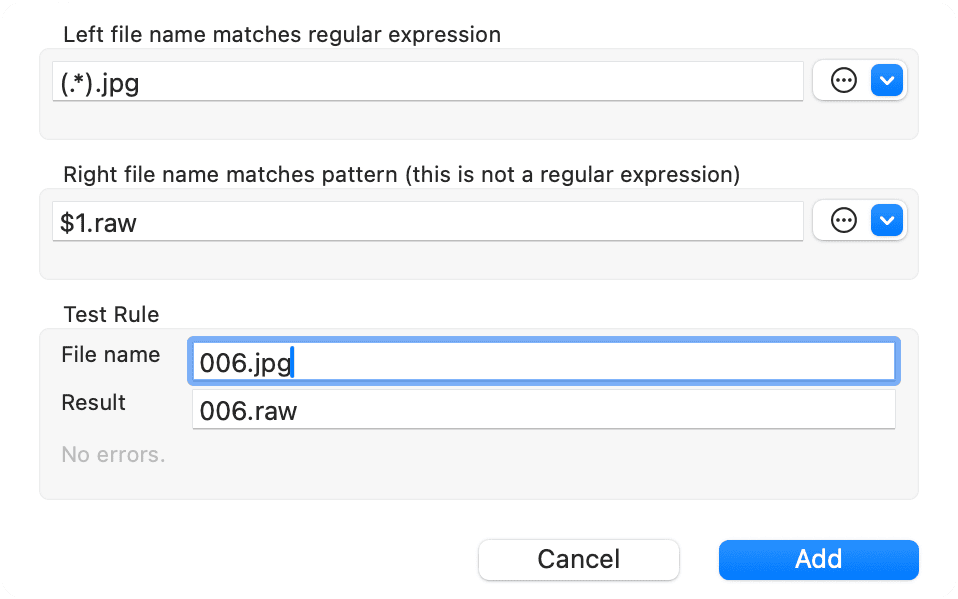

It is possible to verify immediately if the expressions work as expected using the ‘Test Rule’; just type a file name and the ‘Result’ field will be filled accordingly.
